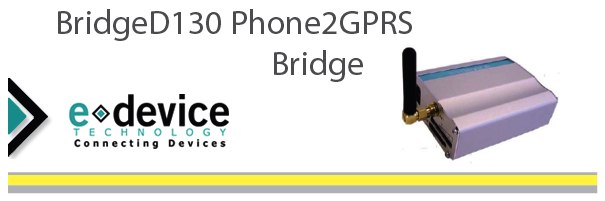

BridgeD130 Phone2GPRS Bridge
A plug-n-play unit to connect wired Data Modem to Internet/Intranet via the GSM/GPRS mobile network
- Ideal for connecting legacy devices with embedded analogue dial-up modems to wireless GSM/GPRS mobile network
- V21, V22, V22 bis, V23, V32, V32 bis and V34 modem support
- No change to host/connected equipment – the device emulates the behaviour of a phone network by generating dial tone, busy tone, ring signal etc etc
- GSM signal strength indicator
- GSM Gateway mode to use GSM Data Connection (CSD) or GPRS transparent modem mode
- Automatic GPRS attachment
- Award winning internal TCP/IP stack
- Class 10 GPRS modem, 85.6 kbps downlink/42.8 kbps uplink
- 16 Mbit Flash
- AT# Interface
- 8 to 15 VDC operating voltage, Rechargeable 6V battery
- -20°C to +70°C operating temperature
- 97 x 72 x 33 mm (metal casing)
More Information - (PDF Datasheet)
