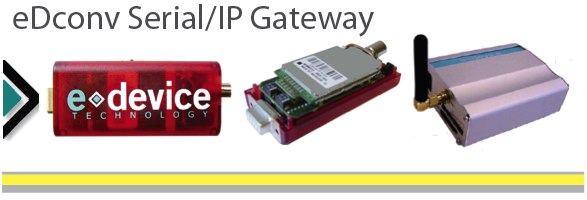

eDconv Serial/IP Gateway
A plug-n-play unit to connect any device equipped with a serial port to a TCP/IP network such as the Internet/Intranet via
- PSTN/POTS (V90) -eDconv100
- LAN/Ethernet networks -eDconv200
- GSM/GPRS -eDconv300
- Once the Internet connection is established, an operator or equipment can have a dialog with the remote device as if it were connected locally via the serial connection
- The included TCP/Serial Bridge PC software provides a virtual serial port for your existing software to communicate with your equipment in the field via the Internet/Intranet
- The TCP session may be established by either the eDconv or the remote PC (client, server, client/server)
- Easy-to-use PC configuration wizard software included. The wizard can operate remotely over the Internet.
- IDeMS Middleware Server solves the challenges relating to IP networking (eg dynamic and private IP addressing etc)
- Award winning internal TCP/IP stack
- eDconv300 - Class 10 GPRS modem, 85.6 kbps downlink/42.8 kbps uplink
- 5 VDC operating voltage
- -20°C to +70°C operating temperature
- 100 x 40 x 7 mm (plastic casing), metal casing also available
More Information - (PDF Datasheet)
