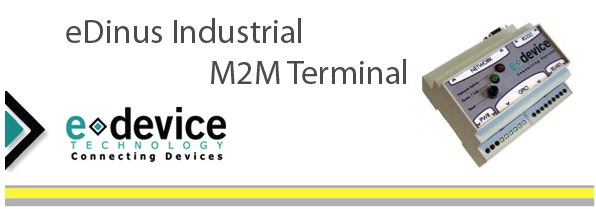

eDinus Industrial M2M Terminal
A plug-n-play M2M industrial terminal for remote site monitoring over the Internet over:
- PSTN/POTS (V90), PPP client -eDinus100
- 10 Mbit LAN/Ethernet networks, DHCP client -eDinus200
- GSM/GPRS, class 10 GPRS modem -eDinus300
- The eDinus can be connected to any equipment through a wide range of hardware interfaces:RS232, RS422, RS485, analogue and digital input/output (9 software configurable GPIO), and a dry switch
- Dual Core – the integrated 8-bit ATMega microprocessor is user programmable. As such, the client specific protocol and application software, coded in C, can be embedded into the terminal.
- The Windows based Software Development Kit (SDK) is supplied with eDinus
Award-winning TCP/IP stack, included FTP and email client, DNS and NTP client, as well as web server
- eDconv300 - Class 10 GPRS modem, 85.6 kbps downlink/42.8 kbps uplink
- 9 to 60 VDC or 110 to 220 VAC operating voltage
- -20°C to +70°C operating temperature
- 2kV Galvanic Isolaton
- 100 x 40 x 7 mm (plastic casing), metal casing also available
More Information - (PDF Datasheet)
