Touch Panel, zenon HMI and PLC in a box

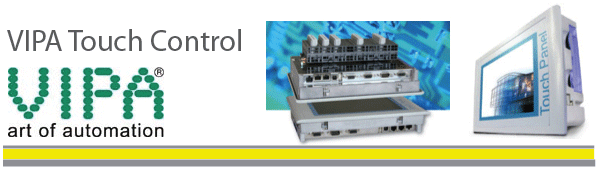

VIPA Touch Control
An all-in-one unit with integrated HMI and PLC that provides everything required for small to medium sized automation tasks
- The integrated SPEED7 PLC is the fastest hard PLC in the world.
- Instruction Set compatible with Siemens STEP®7
- SVGA colour screen sizes are 8.4 “ to 12.1”. IP65 protection on the screen-side
- Battery backed work memory up to 512 Kbyte and support MMC cards for program and data storage
- Extensive communications options that include RS232, RS422/RS485, CAN, Profibus-DP, USB (for printers, adapters for Bluetooth or WiFi) and Ethernet.
- A 35mm DIN rail is available at the rear panel for analogue and digital I/O expansion. Peripheral interface for connection of I/O modules from VIPA’s System 100V and 200V series .
- Windows® CE 5.0 or Windows® CE 5.0 Professional plus operating system and zenon CE 6.22 HMI Runtime licence (including VIPA driver)
- 24 VDC operating voltage
- 0°C to +50°C operating temperature
More Information - (PDF Datasheet)
More Information about Touch Control with zenon - (PDF Datasheet)
